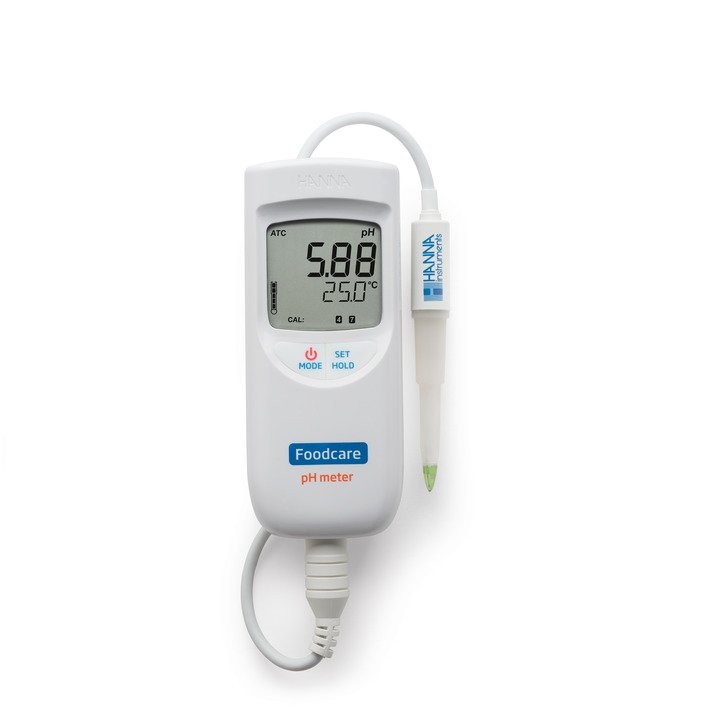

Portable pH Meter for Food and Dairy
Probe Condition
An on-screen indicator provides visual confirmation that your probe is working at its best.
Low Battery Indicator
The included batteries provide 1200 hours of continuous use. When the battery level is below 10%, a warning symbol will blink to indicate low battery condition. When low battery power may affect your results, the meter will shut down to avoid erroneous readings caused by low battery level.
Automatic Shut-off
The auto-off feature can be set to shut the meter off at 8 or 60 minutes, or it can be disabled so that the meter continuously stays on. The auto-off feature prolongs battery life for peace-of-mind and energy savings if the meter is accidentally left on.
Built to be Durable
Designed to withstand the knocks, drops, and spills of real life, the new IP67 body ensures top performance in any environment. These meters are protected against dust and water intrusion from any direction.
Portable Design
Made to fit comfortably in your hand for on-the-go testing, the multilevel LCD display provides at-a-glance readings of pH and temperature from any angle and dual button operation streamlines the testing process for any user.
Quick Connect Probe
A Quick Connect DIN connector makes attaching and removing the probe simple and easy. The rubber coating protects the cable and provides a water-tight seal without twisting.

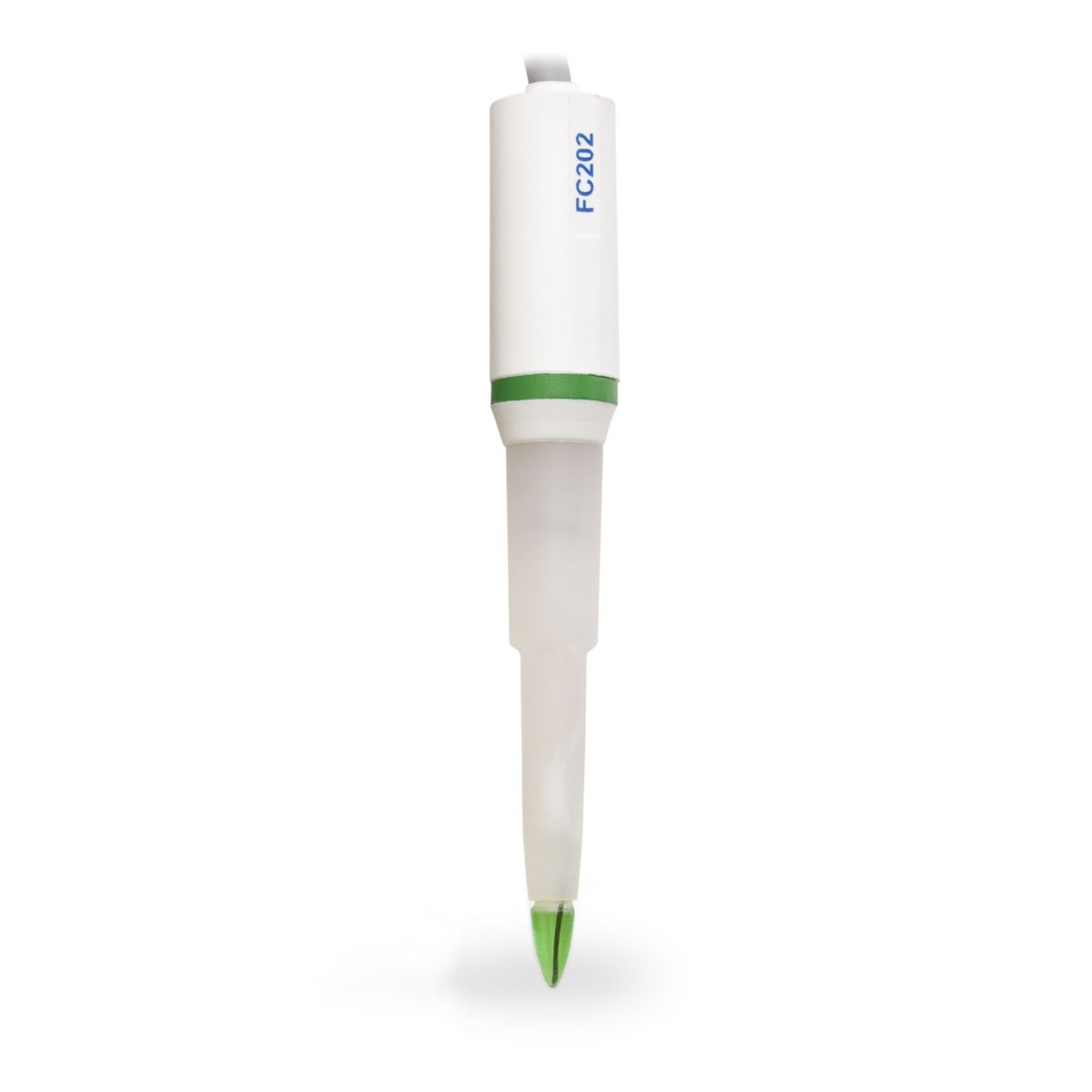

Your measurements require detailed attention; so should your electrode. The HI99161 Portable pH Meter for Food and Dairy features a replaceable FC2023 probe that has been carefully designed for the pH analysis of semisolid foods such as processed meats, soft cheeses, soups, sauces, condiments, jams, jellies, dough, ice cream, sushi and rice.
Open Junction
The open junction design reduces clogging from suspended solids and proteins found in food and dairy products for a more stable pH measurement and reduced maintenance.
Conical Glass Tip
The conical shaped tip design allows for penetration into solids, semi solids, and emulsions for the direct measurement of pH in a variety of food products. Low Temperature (LT) glass is used for quicker results at lower temperatures.
PVDF Body
Polyvinylidene fluoride (PVDF) is a food grade plastic that is resistant to most chemicals and solvents used for disinfection in the food sector, including chlorine (bleach).
We believe that buying a meter should be simple. Your Portable pH Meter for Food and Dairy is equipped with everything you need for successful testing right out of the box.
Electrode Cleaning Solution
Your Portable pH Meter for Food and Dairy comes with cleaning solution that has been engineered to keep your electrode free from oils and solids found in food products. This concentrated combination of detergents cleans your meter quickly and effectively so that your meter stays in optimum condition.
pH 4 & 7 Buffer Sachets
When performing a pH calibration it is important that the correct buffers are used. We include some start buffers to get you going. The single-use sachets are individually sealed so you use fresh buffer each time you calibrate.
HI99161 Models and Compatible Accessories
Old HI99161 (Left)
- Uses the FC202D pH probe with DIN Connector
- Compatible with the HI710024 Shockproof Boot
New HI99161 (Right)
- Uses the FC2023 pH probe with Quick DIN Connector
- Compatible with the HI710029 Shockproof Boot
*The new Quick DIN probe connection is compatible with the old body design, however, the old DIN probe connections are not compatible with the new body design.
Resources
| Specification Name | Detail |
|---|---|
| sku | HI99161 |
| pH Range | -2.00 to 16.00 pH / -2.0 to 16.0 pH |
| pH Resolution | 0.01 pH / 0.1 pH |
| pH Accuracy @ 25°C / 77°F | ±0.02 pH / ±0.1 pH |
| pH Calibration | automatic, at one or two points with two sets of standard buffers (pH 4.01 / 7.01 / 10.01 or pH 4.01 / 6.86 / 9.18) set Standard: 4.01; 7.01; 10.01 or NIST: 4.01; 6.86; 9.21 |
| mV Range | ±825 mV (pH-mV) |
| mV Resolution | 4 mV |
| mV Accuracy | ±1 mV (pH-mV) |
| Temperature Range | -5.0 to 105.0 °C/23.0 to 221.0 °F |
| Temperature Resolution | 0.1 °C/0.1 °F |
| Temperature Accuracy @ 25°C / 77°F | ±0.5 °C up to 60 °C; ±1.0 °C outside ±1.0 °F up to 140 °F; ±2.0 °F outside |
| Temperature Compensation | Automatic -5.0 to 105.0 °C/23.0 to 221.0 °F |
| Power Supply | 1.5V AAA batteries (3 pcs.) |
| Power Consumption | approx. 1400 hours of continuous use |
| Environment | 0 to 50°C (32 to 122°F); RH max 100% RH max. 100% |
| Dimensions | s 154 x 63 x 30 mm (6.1 x 2.5 x 1.2”) |
| Weight | 199 g (6.91 oz.) with batteries |
| Ordering Information | Each meter is supplied complete with: • FC2023 preamplified pH/temperature probe with DIN connector and 1 m (3.3’) cable, conical tip • pH 4.01 & 7.01 Buffer sachet • HI700601 Electrode cleaning solution (2 sachets) • 100 mL beaker (1 pc.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual |
| Warranty | 2 years |
| Recommended Probe | FC2023 preamplified pH/temperature probe with DIN connector and 1 m (3.3’) cable, conical tip (included) |
